Glass fiber
ISO NOISE Standard
Glass-fiber batt for the cavity of lightweight and double-leaf walls
- Size
- 60 × 120 cm
- Thickness
- 50 mm
- Reference price
- 180 THB / sheet
Sound insulation for wall and ceiling cavities
A quieter wall starts with what is inside it
ISO NOISE is an insulation batt placed inside the cavity of lightweight walls, double-leaf masonry walls and ceilings to reduce sound passing through — without making the wall thicker.
- 7–10 dB
- Added sound insulation of a lightweight wall with the batt, compared with an empty cavity*
- NRC 0.85
- Sound absorption of the material, Standard variant (Premium 0.76)*
- 50 mm
- Sheet thickness — sufficient for a 3-inch frame, with no added wall thickness
*According to the supplier and the product catalogue. The documents do not state a test standard. Actual sound insulation depends on the complete wall system.
How it works
The cavity is where sound gets through
When sound hits the first wall layer, its energy builds up and resonates in the cavity, then pushes through to the other side. Fibrous insulation in the cavity absorbs that energy.
Explanatory drawing. Wave sizes are illustrative, not measured values.
Products
Two variants with the same size and thickness. Inside a wall cavity they give the same sound-insulation benefit; they differ in material and suitable environment.
Compare variants

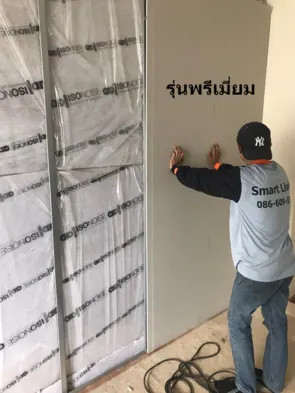

Polyester fiber
ISO NOISE Premium
Polyester batt that tolerates moisture — for exterior walls and noise barriers
- Size
- 60 × 120 cm
- Thickness
- 50 mm
- Reference price
- 250 THB / sheet
Get the concept right first
Sound insulation and sound absorption are different things
Sound insulation
Stops sound passing through a wall, ceiling or floor from one room to another. It is rated as the STC of the complete wall system. ISO NOISE works here, as the core of the wall.
Sound absorption
Reduces echo and reverberation inside a room using materials on the wall or ceiling surface. It is rated by the absorption coefficient or NRC of a material. Absorptive panels in a room do not stop sound passing through the wall.
Solutions by room type
Step-by-step wall, ceiling, door and window guides with real site photos. Articles are currently available in Thai.
Engineering behind the advice
Designed by calculation and measurement, not guesswork
-
A dedicated acoustic engineer
ภูมิใจ ประเสริฐกุลวงศ์ — M.Eng. Civil Engineering, Chulalongkorn University · MSc Sound and Vibration Studies, University of Southampton
-
Wall performance prediction
Insul software is used to predict the sound insulation of wall systems, and Odeon to predict sound levels for the actual site conditions.
-
On-site measurement
Field measurement of wall sound insulation and reverberation using a sound level meter and loudspeaker source, with a report recommending corrective measures.

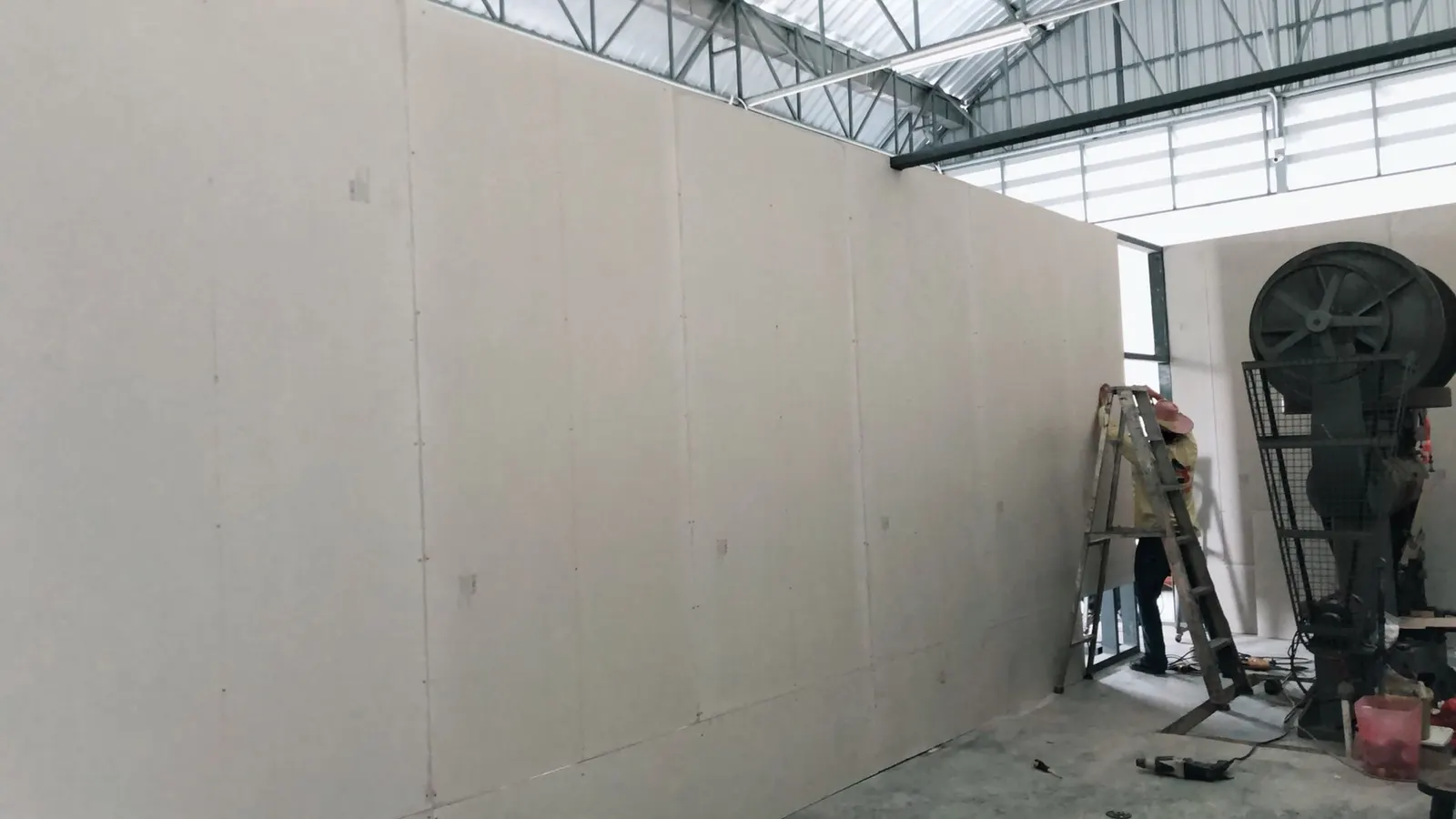

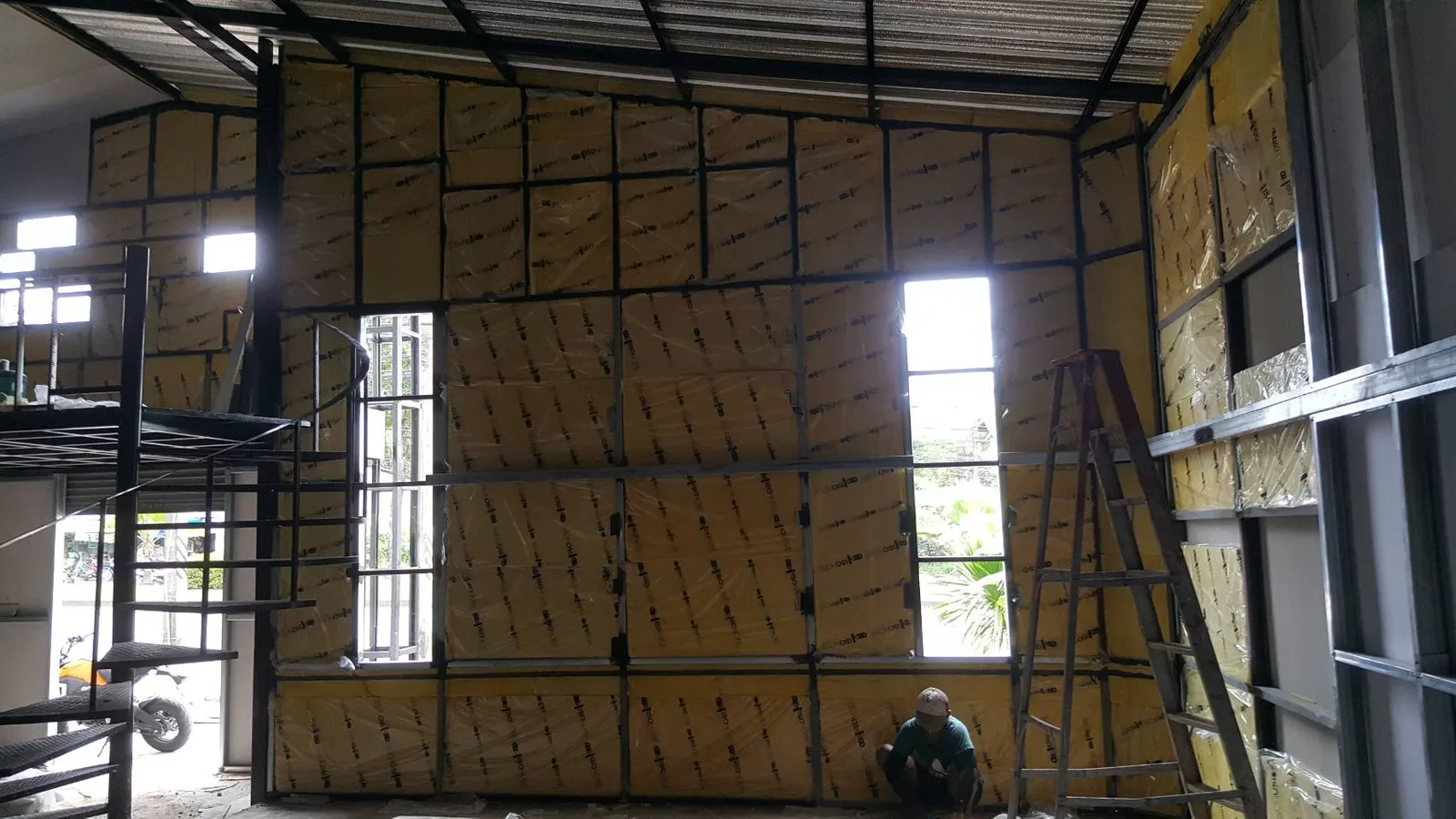

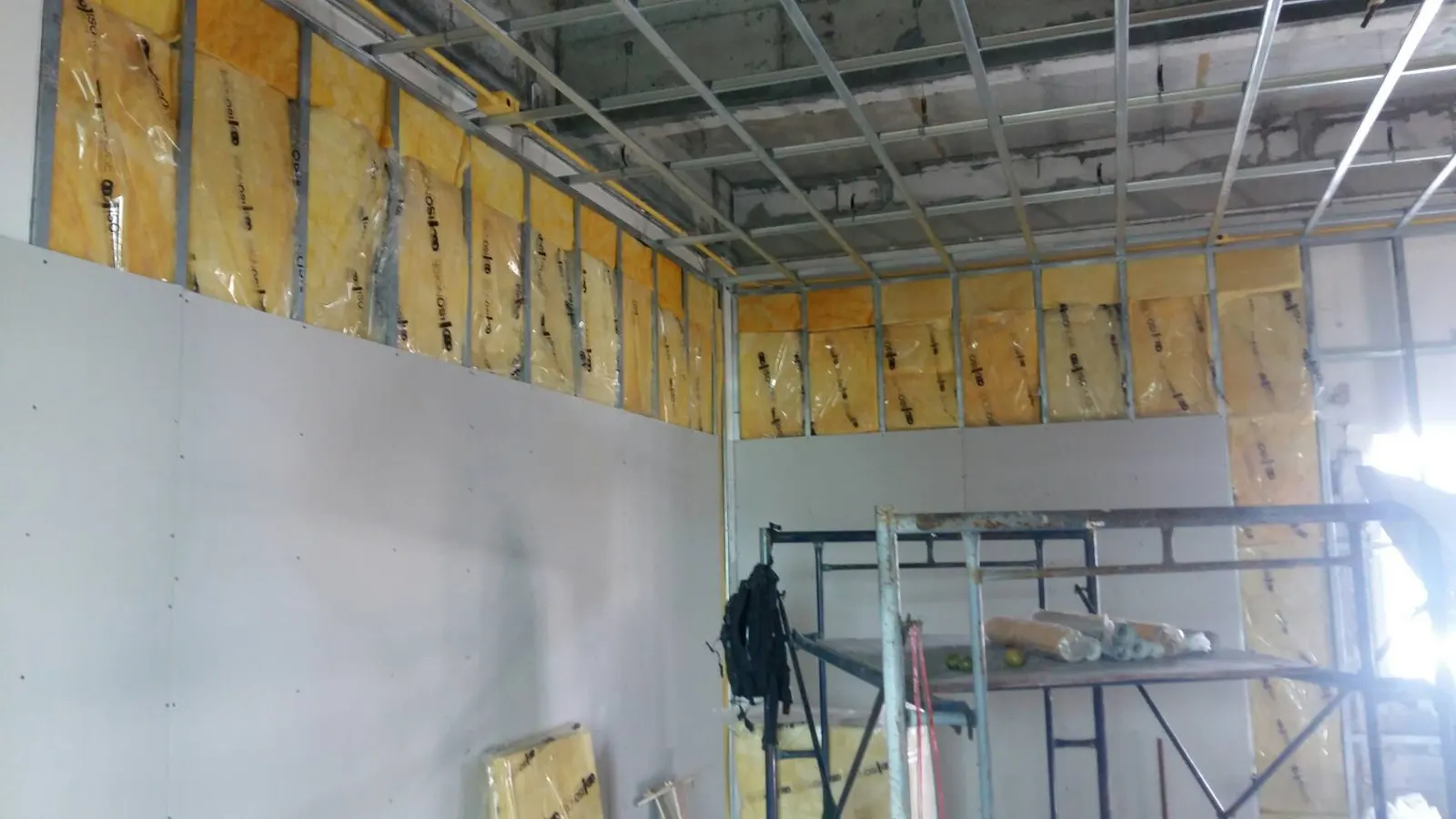

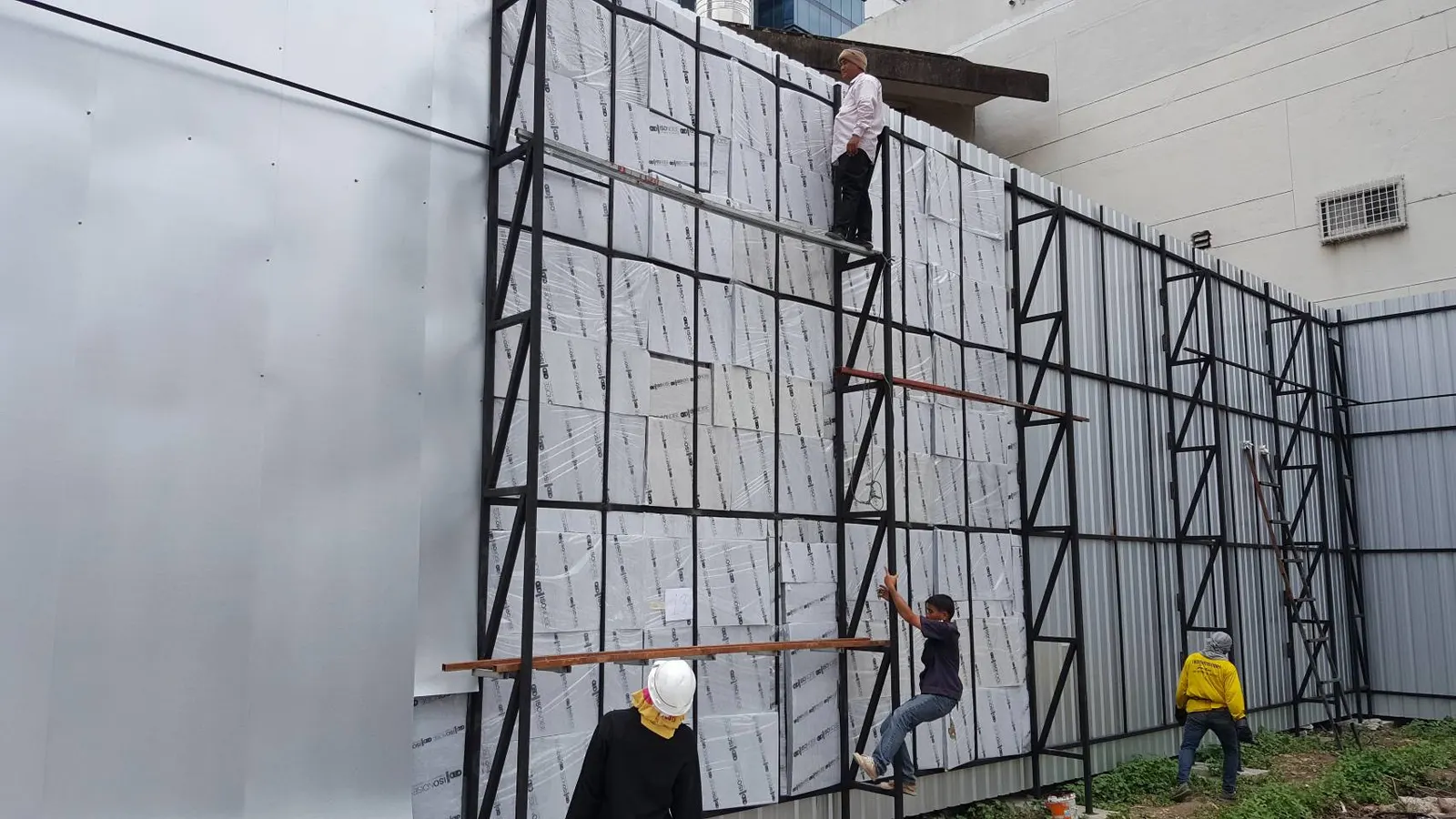

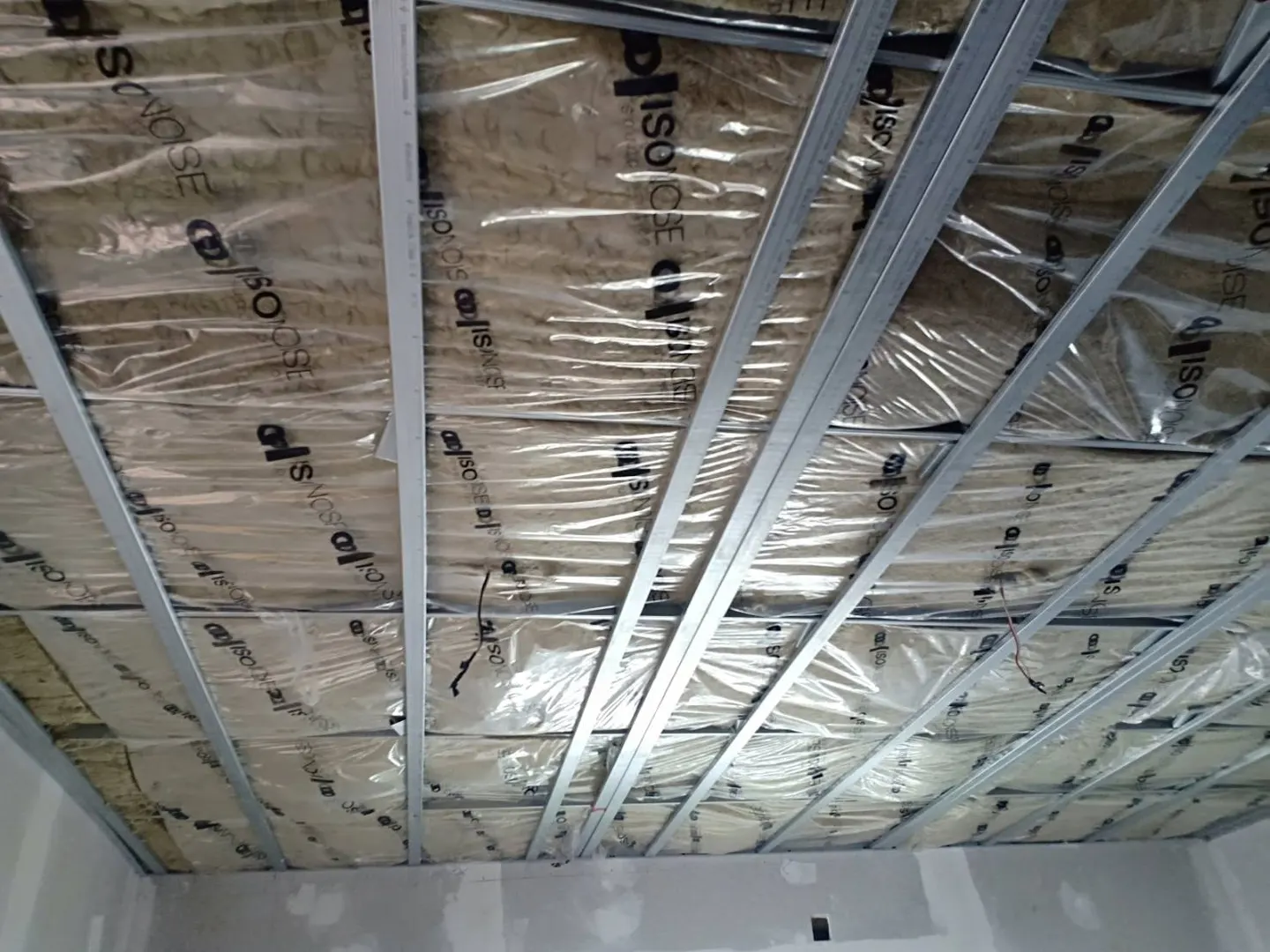

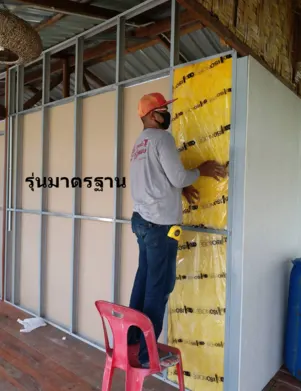

Real installations
Site photos of sound-insulating walls and ceilings for rehearsal rooms, meeting rooms, restaurants, condominiums and machine rooms.
View all
Knowledge: sound and sound insulation
Written by an acoustic engineer, from fundamentals to choosing a wall system.
Talk to an acoustic engineer directly
Tell us the wall or ceiling area you need to treat. The engineer will calculate the number of sheets, recommend a suitable wall system and quote the goods with delivery anywhere in Thailand.
